Implementing nitrous oxide cracking technology in the labour ward

Implementing nitrous oxide cracking technology in the labour ward to reduce occupational exposure and environmental emissions: a quality improvement study.

A.Pinder, et al.

Anaaesthesia 2022, 77, 1228-1236


2021-22 study to ascertain the impact of cracking technology on birthing room nitrous oxide levels.

Mean ambient nitrous oxide levels were recorded during the last 30 minutes of uncomplicated labours in 36 cases across 3 UK hospitals.


Baseline levels without the cracking unit were established over 12 readings: mean 45.4ppm, range 1.4-172.4ppm.


The cracking unit was then used with three different patient interfaces:

  1. mouthpiece; 8 measurements: mean 13.05, range 0-64.9ppm; 71% lower vs baseline
  2. cushion face mask; 8 measurements: mean 7.5ppm, range 0-234.2ppm; results were too variable to meet criteria for significance.
  3. low profile face mask: 8 measurements: mean 8.7ppm, range 0-27.3ppm; 81% lower vs baseline.


22 midwives who used the equipment were surveyed with generally positive feedback.

19 commented that the unit “could be smaller”

8 reported faults with the cracking unit comprising 5 overheating events and 3 malfunctions.

4 described the noise level as unacceptable

The authors note a limitation of this quality improvement study was the lack of strict research protocols especially regarding patient selection/exclusion.


by David Mclaughlin 11 November 2024
Greener NHS Provides a road map for a future Net Zero.
9 November 2024

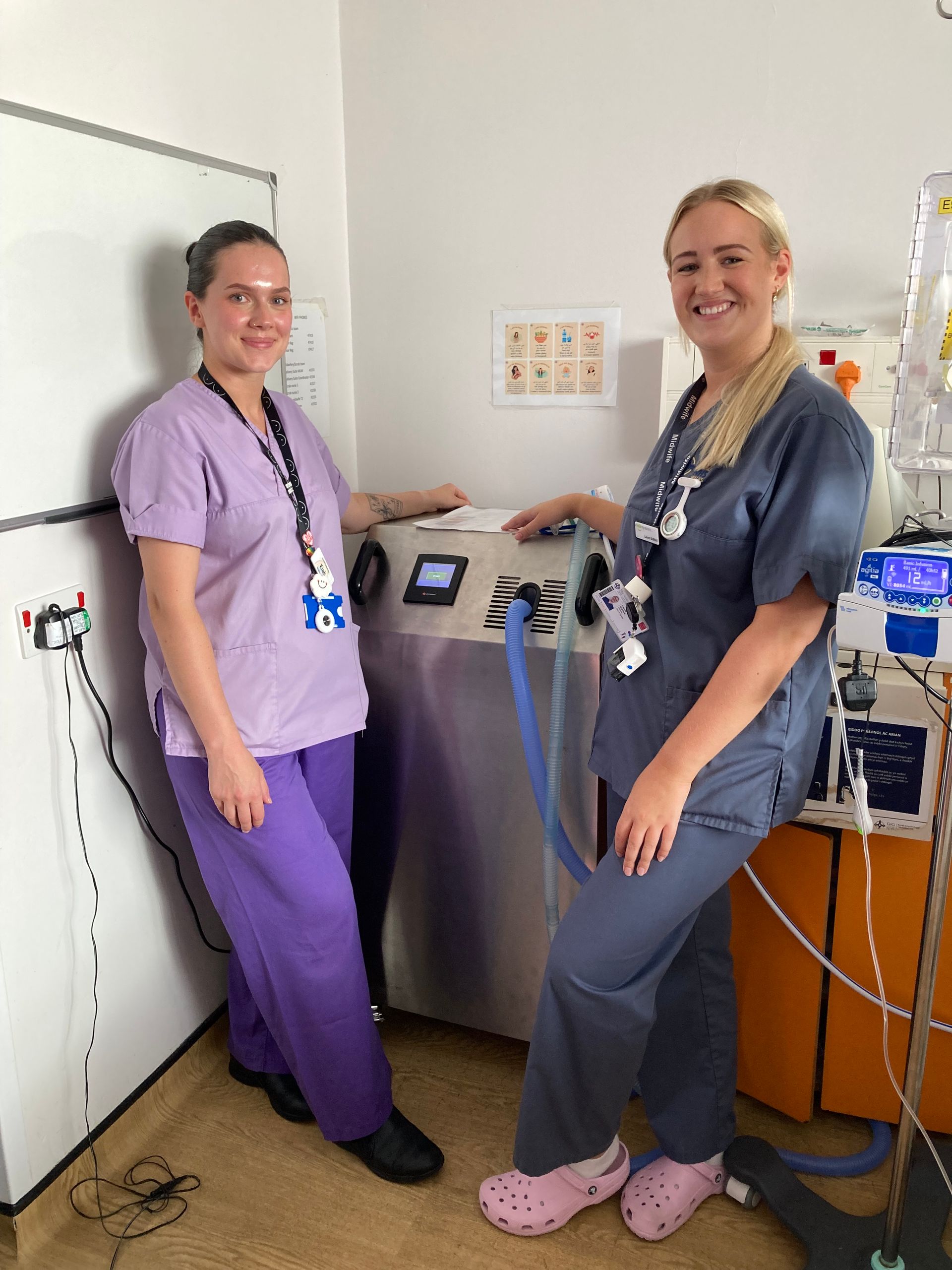

The first production unit was introduced into a delivery suite at UHW, Cardiff mid-August and has been in regular use thereafter. Feedback from midwives was collected both informally and via questionnaire. Key takeaways:  Very positive and supportive of the project in terms of environmental benefit. Staff understand that Entonox is a greenhouse gas and that this machine reduces emissions. Many staff feel it will improve their health and wellbeing by reducing their own exposure to nitrous oxide. The machine was simple and easy to use It was quiet Although large, it was able to fit into the room ok It could be used with a mouthpiece or face mask depending on patient choice It did emit some heat, which although noticeable, didn't make the room uncomfortably hot
9 November 2024

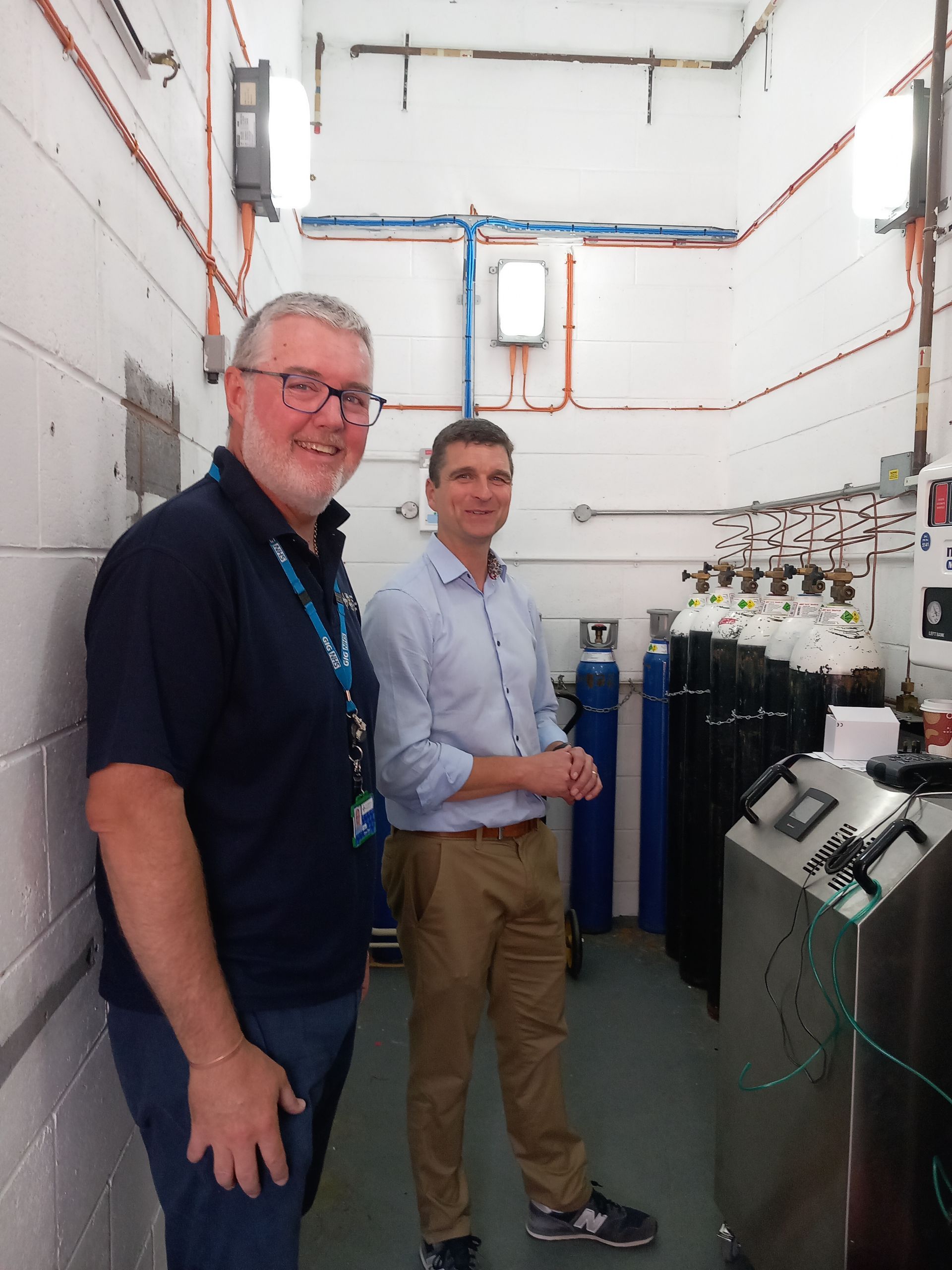

The ability of the N2O Clear product to eliminate nitrous oxide from an inlet stream was evaluated over 2 days at Wrexham Maelor Hospital, north Wales. Using cylinder gas, test flows simulating 1~5 LPM of nitrous oxide and Entonox were introduced into the N2O Clear unit and the exhaust concentration of nitrous oxide was measured using a G200 N2O analyser from QED Environmental Systems. % reduction in nitrous oxide between inlet and exhaust air was then calculated and determined to exceed the target 99% on all occasions.
by David Mclaughlin 8 November 2024
K.A. Henderson, I.P. Matthews, A. Adisesh, A.D. Hutchings. Occup Environ Med 20023; 60; 958-961
